Sine Bar And Slip Gauge. This is also used to find the corrections in measuring instruments like micrometers, vernier calipers etc. Height of gage blocks (units are the same as those used for length of sine bar) height of gage blocks = length of sine bar * sine(angle) see also:

Sine Bar Construction, Working Principle, Uses and from extrudesign.com

Questionsfind the build up of gauge for an angle of. Sine bars are made from a high chromium corrosion resistant steel, and is hardened, precision ground, and stabilized. Calibration grade, grade 00, grade 0, grade i, and grade ii, in the decreasing order of accuracy.

Source: extrudesign.com

Slip gauges are used to measure the object directly to find accuracy. Sine bar is the one of the precision instrument among those.

Source: mechanicalenotes.com

Questionsfind the build up of gauge for an angle of. 1) measure angles very accurately.

Source: www.model-engineer.co.uk

Sine bar is used for checking angle of components, taper of work pieces, etc. Imperial sine bars are usually 2.5, 5 or 10 inches long.

Source: extrudesign.com

The distance between the two setting rollers of the sine bar is given by l. Because of slip gauge adjustment problems.

Source: viden.io

Where greater accuracy is required, the position of dial test gauge probe can be sensed by adjusting a pile of slip gauges till dial indicator indicates same reading over roller of sine bar and the slip gauges. Sine bar is the one of the precision instrument among those.

Source: viden.io

18 if we are using a 5 in. Slip gauges are made in five grades of accuracy.

Source: viden.io

The sine bar has two round pieces fitted to it so that its effective length is the same at any angle. Consider a sine bar of 250mm that is used to measure the taper of a workpiece in the work.

Source: engineeringsciencepage.blogspot.com

A sine bar has to be used in conjunction with a surface plate and slip gauges. Calibration grade, grade 00, grade 0, grade i, and grade ii, in the decreasing order of accuracy.

Slip Gauges Are Made In Five Grades Of Accuracy.

Hadapsar, pune, maharashtra gst no. Sine bars are made from a high chromium corrosion resistant steel, and is hardened, precision ground, and stabilized. Please address the following questions as part of the report.

A Sine Bar Consists Of A Hardened, Precision Ground Body With Two Precision Ground Cylinders Fixed At The Ends.

L=200 mm or 300 mm. Where 'h' is the height of the slip gauges placed below the roller and 'l' is the length of sine bar i.e. Call 08048118945 81% response rate.

Where Θ Is An Inclination Angle, H Is Height Of Slip Gauges, And L Is Distance Between Rollers Of Sine Bar.

Slip gauges are graded according to their accuracy as grade 0, grade i and grade ii. In this article, we are going to discuss the construction, the working principle, uses of sinebar, formula to determine the angle. Slip gauges are used to find a clear tolerance which gives a high accurate measurements.this can also be used in sine bar for angular adjustments.

The Name Suggests That Sine Bar Work On Sine Principle.

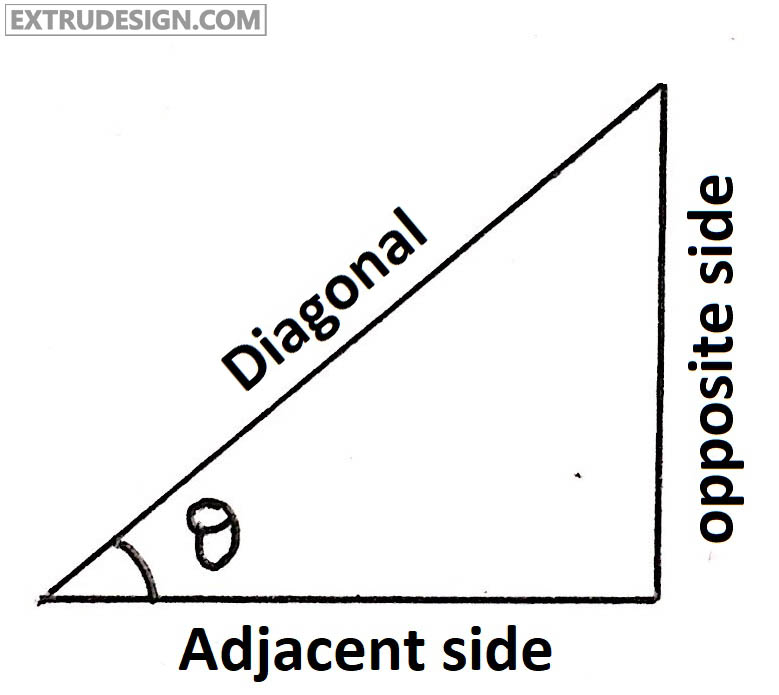

Sine bars are always used along with slip gauges as a device for the measurement of angles very precisely. The sine bar forms the hypotenuse of a right angle triangle, while the slip gauge blocks form the opposite side. The means to do so are ‘slip gauges’.

Grades Of Accuracy Of Slip Gauges:

Sine bar is used to measure angle very accurately or face locating. Let the sine bar be set to an angle θ. Sine bars cannot be used for conveniently for.
